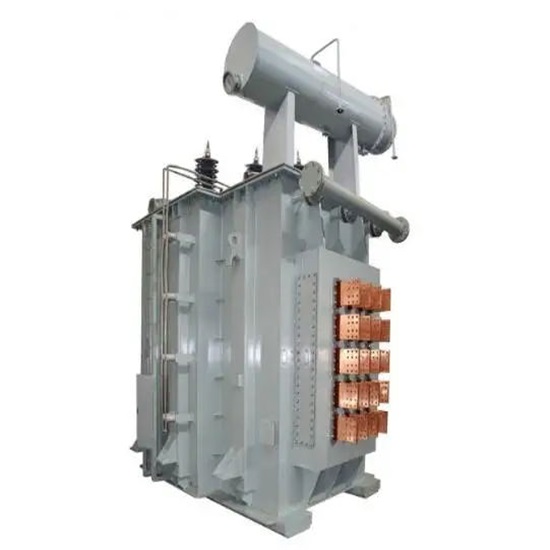

Electric arc furnace transformer

Parameter:

(1) Primary rated voltage. There are mainly 6kV, 10kV, 35kV and 110kV.
(2) Secondary voltage. The range is generally between 100 and 1200V.
(3) Rated current. The rated current in the low-voltage side coil remains unchanged; while the current in the high-voltage coil changes with the secondary current.
(4) Power supply frequency. Power frequency f=50Hz/60Hz
(5) Efficiency. Generally, η=95% to 98% for small and medium-sized transformers, and η=99% for large transformers.

[email protected]
 +86 13783181880

Free Quote  chat online 

Product Description

Electric arc furnace transformer refers to the power supply for electric arc furnaces such as various metals, ore smelting, heat treatment, preparation of alloys, and electroslag return. The electric arc furnace transformer is one of the main electrical equipment of the electric arc furnace. Its function is to reduce the input high voltage of 10-110kV (or even higher) to 100-1200V and then output it to generate a large current to power the arc furnace transformer.

Features:
(1) The transformation ratio is large
(2) The secondary current is large
(3) The secondary voltage can be adjusted to meet the needs of the smelting process.
(4) The overload capacity is large, and the transformer has a short-time overload capacity of 20%
(5) Higher mechanical strength
(6) The maximum temperature of the transformer is less than 95°C during operation.
(7) It is stipulated that the primary (high voltage) coil can be connected to both a Y shape and a △ shape, and the secondary (low voltage) coil can only be connected to a △ shape.

Delivery packaging and logistics

Packaging: Wooden case or according to client’s requirements The requirements for the making and reinforcement of packing boxes were strictly in accordance with the international standards.
Shipping: Land transportation/Ocean transportation Our products have been shipped all around the world, with an extensive logistic network, we provide the best transportation option for our clients.

FAQ

How do transformers been shipped?

Transformers always been delivered by ship,train or truck for oversea,which with main active body in bulk and accessories in wooden cases.
Can your product be customerized?

Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements.
Do you offer guarantee for the products?

Yes. We offer at least two years guarantee for all of our transformers.
Do you accept FAT(Factory Acceptance Test)?

Yes. It’s available. We are responsible for each set transformer’s testing.
Do you assign engineer for after-sale service?

Yes. For our products,we all show after-sale guide installation adn question inquiry

Certificate display

SGS and other national mandatory product certification, and has a perfect quality, occupational health and environmental management system certification system. Our products have passed ISO9001, 2000 and other international quality system certification.
